Quick Details

  • Light Source: LED
  • Item Type: Tube Lights
  • LED Light Source: SMD2835
  • Warranty(Years): 5
  • Input Voltage(V): ac100-277
  • Lamp Power(W): 18
  • Lamp Luminous Flux(lm): 2000
  • Lamp Luminous Efficiency(lm/w): 130
  • CRI (Ra>): 80
  • Color Temperature(CCT): Warm White
  • Working Temperature(℃): -30 - 40
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP33
  • Certification: CE, FCC, UL
  • Place of Origin: China (Mainland)
  • Brand Name: Bonld LED
  • Model Number: T8
  • power: 18W
  • voltage: AC100-277V
  • size: 1200mm
  • Viewing angle: 120degree
  • End-cap: fixed & lockable rotated end cap are available
  • Light source: SMD2835, LM80
  • Light cover: Milky / clear
  • Colour: W=3045±175K, N=3985±275K, D=5028±283K, C=6530±510K
  • Warranty: 5years
  • Approved: UL,DLC,RoHS,FCC

Packaging & Delivery

Packaging Details N.W.:0.47kg/pc ,
CARTON SIZE L*W*H cm:125X22X22 ,
G.W.:12.3kg/CTN ,
Qty/20' container:11050pcs ,
Delivery Time 3-7days

shenzhen lighting factory good quality 2835smd t8 36w high lumen 130lm/w



Certificates: UL,DLC



Brand:BONLD



Quick Details:


Power:  18W                               Light cover:   Milky or clear          Bean angle:120 degree



Light Source: LED                      Item Type :Tbue Lights                  LED Light Source:2835



Warranty(Years):5                      Input Voltage(V):100-277V                 CRI(Ra>):80



Working lifetime(Hour):50000    Working  Temperature:-20~+45      IP Rating:IP20



Beam Angle(°C):120                  Lamp Body Material: Aluminum      Place of Origin:Guangdong,Chin (Mainland)





Features:


1. UL1598C &DLC Standard, doubled insulated internal driver


2. Long life span, up to 50,000 hours,5 years warranty


3. High power factor≥0.95,THD<15%


4. High efficiency, up to 130lm/W


5. High CRI: Ra>80


6. Energy saving up to 70% than traditional fluorescent lamp


7. Aluminum base for good heat dissipation of LEDs


8. Suitable for use at -20°Cto 45°C




Dimension (Unit: mm) :











Technical Specification:



 Input Voltage

AC100V~277V

 Frequency Range

50Hz~60Hz

 Total Harmonic Distortion

≤ 15 %

Power Factor

>0.9

Power Efficiency

 >87 %

 LED Source

 SMD 4014

Led Luminous Efficiency

110 LM/W-130 LM/W

Color Temperature

3000K,4000K,5000K,6000K

Color Rendering Index

Ra>80

Beam Angle

120°

Working Temperature

-20°C~+45°C

Storage Temperature

-25°C~+65°C

IP Grade

 IP20

 Certificate

 CE, RoHS


Tube Material

 Plastic cover: Milky / Clear / Stripe

Base: Aluminum base

End-cap: Fixed / Rotate/ Rotate & removable

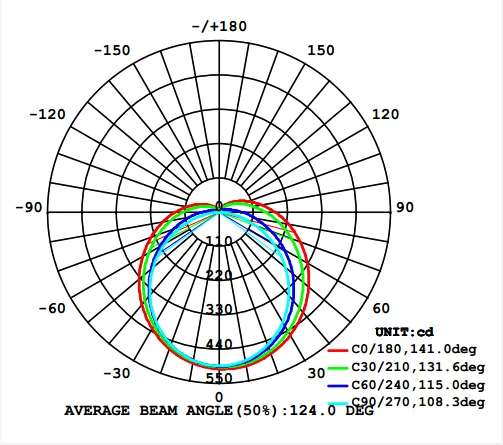

Light Distribution:











 Installation Instruction:

1.Switch off power supply BEFORE commencing work.


2.connect wire without starter and ballast.










Warranty:
1.5 years warranty from the shipping date;
2.BONLD will replace all the failed products due to BONLD design/production quality duringwarranty period;
3.BONLD will bear all cost of maintains if the customer can help us to repair locally;
4.BONLD don't have the responsibility to compensate for any incorrect installation or artificial damage;
