1. UL Standard, doubled insulated external driver 2. High power factor ≥0.95,THD<15% 3. Light source: SMD4014 4. High efficiency, up to 100lm/W 5. High CRI: Ra>80 6. Viewing angle: 120degree 7. Voltage: AC100-277V 8. Both dimmable & non-dimmable versions are available 9. Colour(CCT): W=3045±175K, N=3985±275K, D=5028±283K, C=6530±510K 10. Material: AL+PMMA+PS Diffuser 11. Warranty: 3 years 12. Approved by UL,RoHS,FCC
panel 300mm Techinal specifications:
Item No and Model
Wattage
Lumens
Size(mm)
LED Qty
Driver type
BDPE22NUA-36WA-SKBNB
36W
2880±5%
603*603*9
192
non-dimmable
BDPE22NUA-45WA-SKBNB
45W
3600±5%
603*603*9
216
BDPE14NUA-36WA-SKBNB
36W
2880±5%
1213*300*9
192
BDPE14NUA-45WA-SKBNB
45W
3600±5%
1213*300*9
216
BDPE24NUA-60WA-SKBNB
60W
4800±5%
1213*603*9
384
BDPE24NUA-72WA-SKBNB
72W
5750±5%
1213*603*9
384
BDPE22DUA-36WA-SKBNB
36W
2880±5%
603*603*9
192
dimmable (0-10V)
BDPE22DUA-45WA-SKBNB
45W
3600±5%
603*603*9
216
BDPE14DUA-36WA-SKBNB
36W
2880±5%
1213*300*9
192
BDPE14DUA-45WA-SKBNB
45W
3600±5%
1213*300*9
216
BDPE24DUA-60WA-SKBNB
60W
4800±5%
1213*603*9
384
BDPE24DUA-72WA-SKBNB
72W
5750±5%
1213*603*9
384

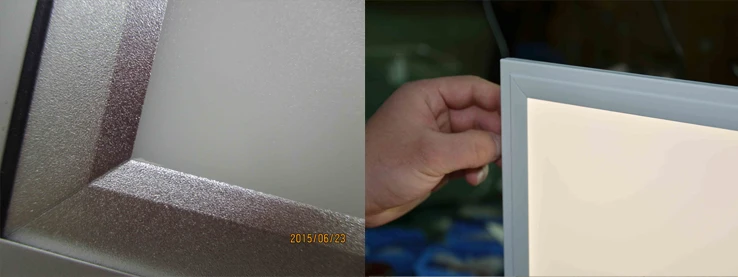

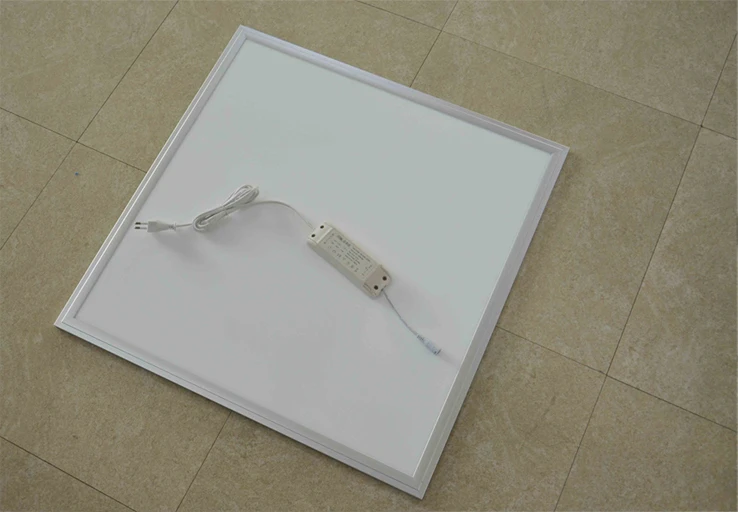

panel 300mm Product Dispaly:

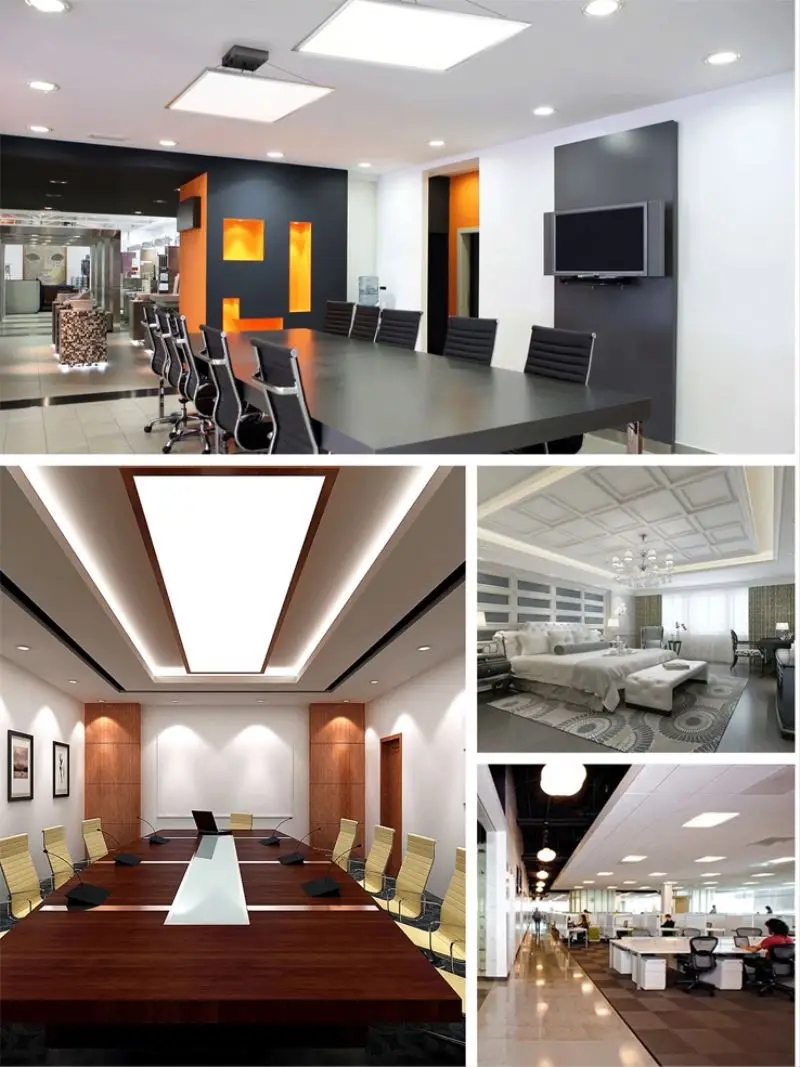

Applications for panel 300mm

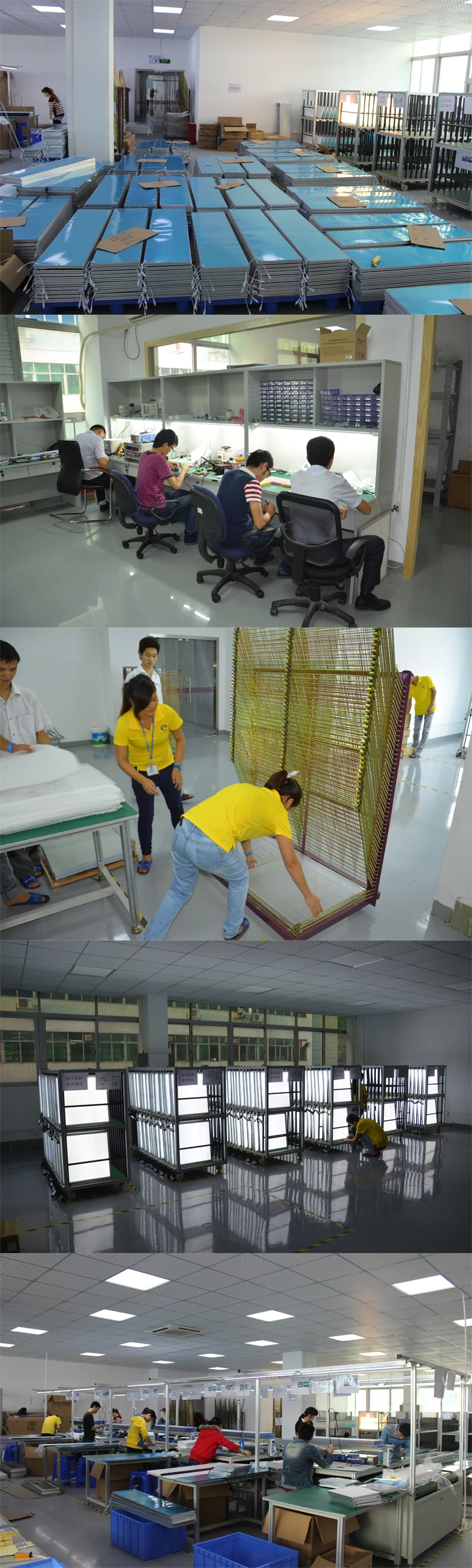

Company Information
Our Exhibitions:
We attend Hongkong Fair, Guangzhou International LED Fair and even overseas failr like New York Lighting Fair each year.
Our Services
lpanel 300mm
A, Contact us for good price and confirm your specifications.
B, When inquiry detail is ok, We can send you samples to check. C, Confirm other details such as delivery time, payment, shipment. D, You pay the deposit. E, After production is finishd, we send the sample for your checking, then you finish payment. F, We arrange shippment and send documents for your custom clearance. G, When you get the goods, tell us the comments then we can do better next time. H, Will share latest price or other news for your reference anytime if you need.
