Square Led Panel 0-10V dimmable panel light 2x2FT panel 603*603mm DLC UL listed

FOB Reference Price:Get Latest Price
US $20.9-22.9 / Piece | 100 Piece/Pieces (Min. Order)
Supply Ability:
50000 Piece/Pieces per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
LED Light Source:
SMD2835
Warranty(Years):
5
Input Voltage(V):
100-277/120-347
Lamp Power(W):
40
Lamp Luminous Flux(lm):
5000
Lamp Luminous Efficiency(lm/w):
125
CRI (Ra>):
80
Color Temperature(CCT):
3000-6000K
Working Temperature(℃):
-20 - 45
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum+PMMA
IP Rating:
20
Certification:
CE, EMC, FCC, LVD, RoHS, UL
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Bonld
Model Number:
BDPE22DUA-40WB-P
Product name:
UL LED panel
Size:
2*2FT
PF:
>0.95
Test:
LM80, LM79
THD:
<15%
Cert.:
UL/cUL/DLC
Packaging & Delivery
Packaging Details
2*2FT 4pcs in 66*68*25cm carton GW. 19.1KG/CTN
Delivery Time
Shipped in 15 working days after payment

Square Led Panel 0-10V dimmable panel light 2x2FT panel 603*603mm DLC UL listed


1)  With isolated external Lifud brand junction box power supply

 2)  PF>0.95, Power Efficiency: >0.87

 3)  LGP 3mm thick, imported from Taiwan

 4)  5 years warranty

 5)  High efficiency: Standard >100lm/W & Premium >125lm/W

 6)  2835SMD LED, LM80

 7)  0-10V/resistance/PWM dimmable  available.

 8)  Energy-saving & Super bright , saving 75% energy compared with traditional  panel lights

 9) DLC standard&Premium, UL/cUL(E471997) approved.

 10) 347V voltage input panels available for Canadian market.

 11) Low price:

2x2 25W, 100-110lm/W low to $15.5 / 2x4 50W 100-110lm/W low to $27.5

2x2 25W, 125-130lm/W low to $19.5 / 2x4 50W 125-130lm/W low to $34.5

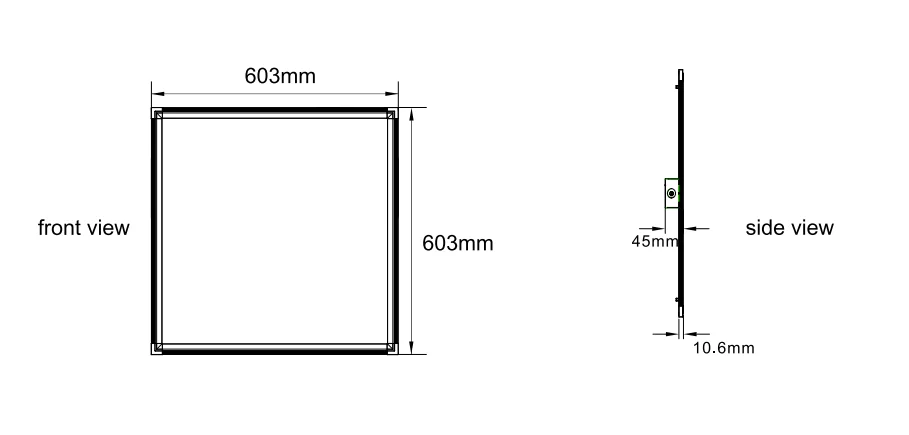

Dimension (Unit: mm):




Parameters:



ItemPowerLumens (lm)SMD2835  LED QtySize(mm)Ouput VoltageCurrent (mA)
BDPE22DUA-25WB25W2600/3200±5%  180603*603*10.6   36-48VDC800mA
BDPE22DUA-40WB40W4000/5000±5%  252603*603*10.61050mA
BDPE14DUA-40WB40W4000/5000±5%  2881213*301*10.61050mA
BDPE24DUA-50WB50W5000/6300±5%  3361213*601*10.61150mA
BDPE24DUA-60WB60W6000/7500±5%  3841213*603*10.61550mA
BDPE24DUA-72WB72W7200/9000±5%  4201213*603*10.61550mA



UL/cUL approved LED panel light

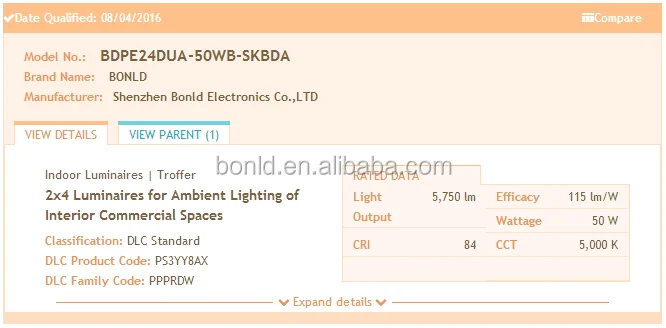

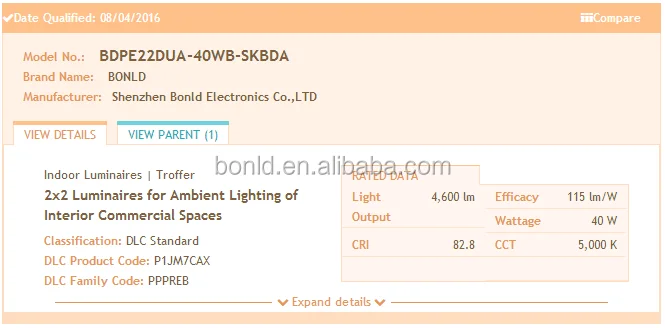

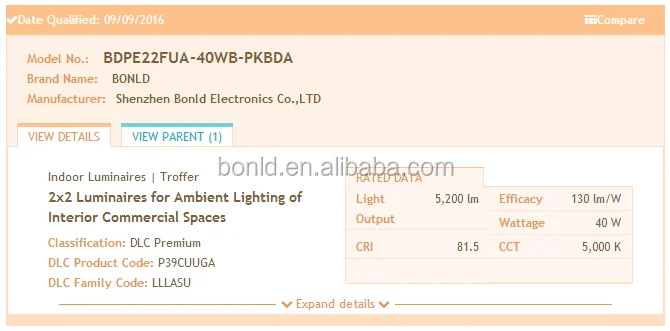

Test report by Lighting Facts / DLC lab:



1) Standard



2) Premium




Packing details:

Part No.Package dimensionN.W.G.W.
2x268*25*68cm, 4pcs/carton3.6kg /PC18.6kg /CTN
1x4129*25*38cm, 4pcs/carton3.7kg /PC18.7kg/CTN
2x4129*25*68cm, 4pcs/master carton7.1kg /PC34.5kg/CTN



Notes:
20GP container load Max. 996pcs 2*2ft, 1*4ft LED panels when 40HQship 2200pcs.

20GP container load Max. 512pcs 2*4ft LED panels when 40HQ ship 1204pcs.

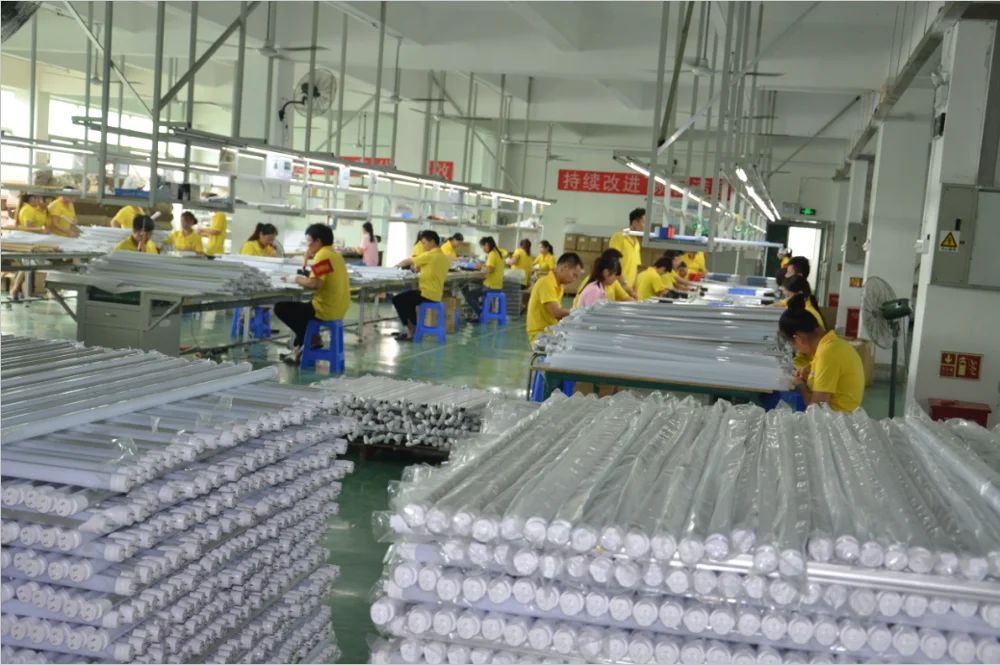

Bonld is a factory which make LED panels and LED tubes only. Most of the products sold to U.S and Canada market. We shipped more than 60 containers of LED panels each month. LED panels are so popular in the market and we hope to work with you to share more of it.
